01-006/00 1999-2000 Protege - Exhaust Resonance Noise At Approximately 2200 - 2300 RPM

APPLICABLE MODELS

All 1999-2000 Protege 1.8L California emissions with A/T and VIN lower than JM1 BJ221* Y0 247106 or JM1BJ223*Y0247106.

DESCRIPTION

An exhaust resonance noise can be heard from the exhaust system at approximately 2200-2300 RPM during acceleration under moderate loads. This concern can be caused by the exhaust flexible joint between catalytic converter and pre-silencer. A dynamic damper set is available to resolve this concern.

Customers having this concern should have their vehicle repaired using the following procedure.

REPAIR PROCEDURE

1. Verify customer concern.

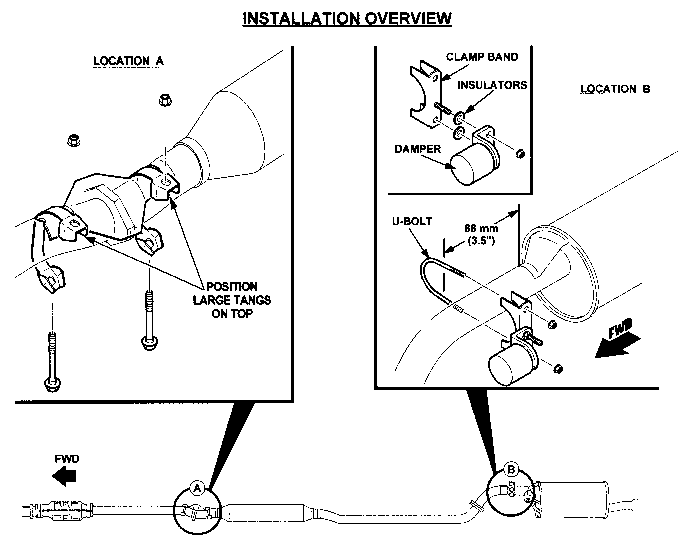

2. While referring to the INSTALLATION OVERVIEW illustration on next page, install stiffener at LOCATION A as follows.
   1. Slightly loosen existing exhaust flange nuts (approximately 1-2 turns).
   2. Install stiffener with notch pointed toward the engine only partially tightening the clamp bolts.

      NOTE: Clamps must be installed with large tang on top.



   3. Tighten exhaust flange nuts.

      Tightening Torque:

      38-51 Nm (28-38 ft-lbf)

   4. Tighten stiffener clamp bolts.

      Tightening Torque:

      7.8-10.8 Nm (69-95 in-lbf)

3. Install damper at LOCATION B as follows. Again. refer to illustration on next page.
   1. Using a ruler, mark the exhaust pipe 88mm (3 1/2 inches) from main silencer brace weld.
   2. Assemble dynamic damper onto stud of clamp band with the two insulators positioned between damper and band as shown in illustration. Tighten nut.

      NOTE: Dynamic damper must face towards front of vehicle.

      Tightening Torque

      16-19 Nm (11-14 ft-lbf)



   3. Loosely install dynamic damper assembly with U-bolt/clamp band centered on mark from STEP 3A.
   4. Center dynamic damper assembly between upper and lower crossmembers as shown in illustration at right.

      Tightening Torque:

      6.9-9.8 Nm (60-80 in-lbf)

4. Verify repair.



PARTS INFORMATION

Part Number	Description	Qty.

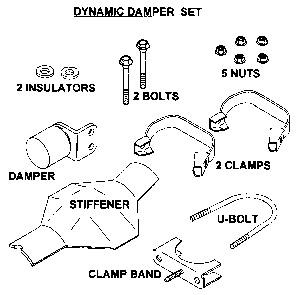

FPY1-40-SAZ	Dynamic Damper Set	1

WARRANTY INFORMATION

NOTE: This information applies to verified customer complaints on vehicles covered under normal warranty. Refer to the SRT microfiche for warranty term information.
