TSB: 02-002/00

CAMBER ADJUSTMENT BOLT

NOTE: This bulletin replaces R002/97. Please update your records accordingly.

APPLICABLE MODELS

All 1995-1998 Protege and all 2000-2001 MPV.

DESCRIPTION

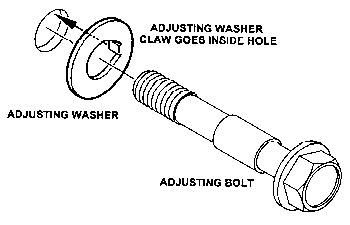

This bulletin explains camber adjusting procedures for 1995-1998 Protege and 2000-2001 MPV. The current Workshop Manual does not indicate how to use an adjusting washer in combination with an adjusting bolt during camber adjustment procedures.

When adjusting camber, use the following procedure.

1995-1998 Protege

1. Place the vehicle on a lift and remove wheel.
2. Remove the UPPER pivot bolt.

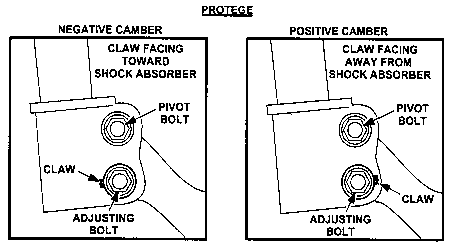

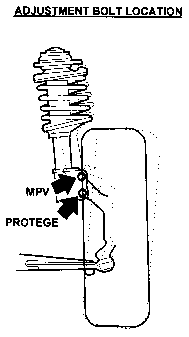

3. Remove the LOWER bolt as shown and replace it with an adjusting bolt and adjusting washer.

4. Tighten the nut and adjusting bolt.

Tightening Torque: 103-126 N.m (10.5-12.9 kgf.m)

2000-2001 MPV

1. Place the vehicle on a lift and remove wheel.
2. Loosen LOWER pivot bolt.

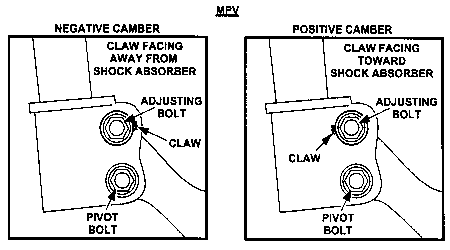

3. Remove the UPPER bolt as shown and replace it with an adjusting bolt and adjusting washer.

4. Tighten the nut and adjusting bolt.

Tighten Torque: 103-122 N.m (10.5-12.5 kgf.m)

PARTS INFORMATION


Part Number

Description

Qty.

B4Y5-34-112

Bolt - Protege

1

B4Y5-34-096

Washer - Protege

1

LCY2-34-112

Bolt - MPV

1

LCY2-34-096

Washer - MPV

1
