Note: This bulletin supersedes the following TSB(s): 02-001/03. Please update your records accordingly.
This bulletin supersedes the previous bulletin 02-001/03, issued on 02/24/03. The APPLICABLE MODEL(S)/VINS and DESCRIPTION have been revised.
2000-2003 Protege
2002-2003 Protege5
2000-2002 626
2000-2002 Millenia
2000-2006 Miata
2004-2006 RX-8
2004-2006 Mazda3
2006 Mazda5
2003-2006 Mazda6
2000-2006 MPV
2001-2006 Tribute
2000-2006 B-Series Truck

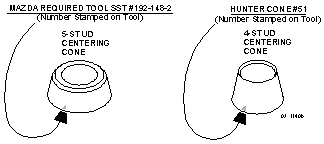

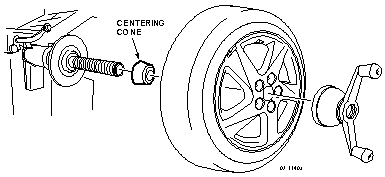

If a vehicle has body vibration or steering wheel shimmy while driving, and the root cause is determined to be tire balance, re-balance the tires using a Hunter GSP 9700/9712 balance machine. When using the Hunter GSP 9700/9712, be sure to use the following centering cones and cone/wheel set up listed below. Using the appropriate centering cone ensures that the wheel will be properly centered to the centering cone.
To find the location of a GSP 9700/9712 near your dealer, visit Hunter's web site at www.gsp9700.com and click on 'Find a GSP9700 Near You'.
NOTE: Wheel balance cones have an ID (inside diameter) of 40mm which will fit most tire balancers.
