TSB: 09-008/99

1999 Protege - POWER DOOR LOCK MALFUNCTION

APPLICABLE MODELS

All 1999 Protege with VINs lower than JM1 BJ22 0 119526.

DESCRIPTION

Some vehicles may exhibit the following power door lock malfunctions:

NOTE: When unlocking all other doors at the drivers door lock, be sure to hold the vehicle key in the unlock position (counter clockwise) for approximately one (1) second. The passengers door lock should unlock all other doors immediately when the key is in the unlock position.

This could be caused by corrosion and/or water on the door switch contacts. A modified door lock switch with a rubber seal is available to resolve this concern.

Customers having this concern should have their vehicle repaired using the following procedure.

REPAIR PROCEDURE

1. Verify customer concern.

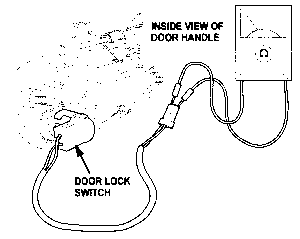

2. Using an ohm meter, check for continuity between the two (2) door lock switch terminals while placing the lock switch in the various positions as shown in the table below.



Switch Position

Specification

Neutral

Open

Lock

(clockwise)

900-1000 ohms

Unlock

(counterclockwise)

0.1-0.2 ohms


3. Verify repair.

PARTS INFORMATION



Part Number

Description

Qty.

BJ0E 58 498

Switch lock cylinder (R)

1

BJ0E 59 498

Switch lock cylinder (L)

1

WARRANTY INFORMATION

NOTE: This information applies to verified customer complaints on vehicles covered under normal warranty. Refer to the SRT microfiche for warranty term information.



Warranty Type

A

Symptom Code

64

Damage Code

93

Part Number Main Cause

SEE PART(S) INFORMATION

Quantity

1

Operation Number / Labor Hours

S1039ARX / 0.4 hr. (one side)

S1039BRX / 0.7 hr. (both sides)
