09-031/04 2004 MAZDA3 - LOOSE DOOR TRIM SCREW CAP

APPLICABLE MODEL(S)/VINS

2004 Mazda3

DESCRIPTION

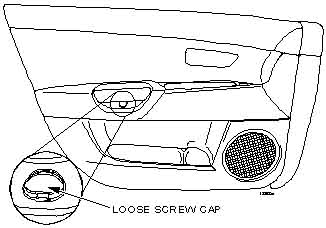

Some vehicles may have a door trim screw cap that is loose and stays open. During production, the cap may deform and will not stay closed.

To prevent tab from deforming, the shape has been changed. The screw cap is now modified and also available separately as a service part

Customers having this concern should have their vehicle repaired using the following procedure.

REPAIR PROCEDURE

NOTE: It is no longer necessary to replace the door trim assembly to repair the concern.

1. Verify customer concern.

2. Record radio preset stations.

3. Set ignition to LOCK position.

4. Remove door trim according to the workshop manual (section 09-17 FRONT DOOR TRIM REMOVAL/INSTALLATION).

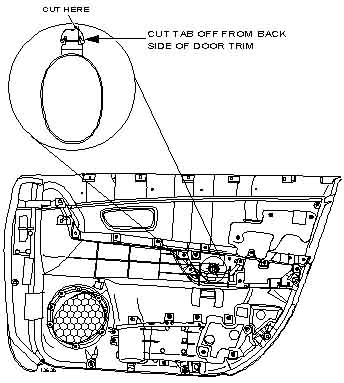

5. From the back of the door trim, cut tab off.

   NOTE: Be careful not to damage the cap installation hole on the door trim.

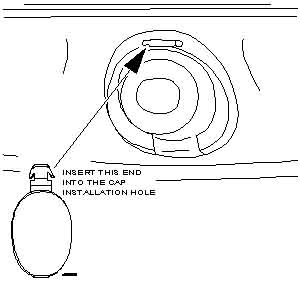

6. Install the modified screw cap in the door trim.





7. Re-install the door trim.

8. Reconnect negative battery cable and program radio stations and clock.

9. Verify repair.

PART(S) INFORMATION

Part Number	Description	Qty.	Color
BP4K-68-406C 02	Screw Cap (front right)	1	Black
BP4K-68-406C 30	Screw Cap (front right)	1	Beige
BP4K-68-407C 02	Screw Cap (front left)	1	Black
BP4K-68-407C 30	Screw Cap (front left)	1	Beige
BP4K-68-D62C 02	Screw Cap (rear right)	1	Black
BP4K-68-D62C 30	Screw Cap (rear right)	1	Beige
BP4K-68-D82C 02	Screw Cap (rear left)	1	Black
BP4K-68-D82C 30	Screw Cap (rear left)	1	Beige

WARRANTY INFORMATION

NOTE: This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair. Refer to the SRT microfiche for warranty term information.
