TSB: AD005/96

PREDELIVERY INSPECTION SUPPLEMENTAL INSTRUCTIONS -- ALL MODELS

APPLICABLE MODELS

All Models

DESCRIPTION

The attached instructions will assist dealer PDI personnel with predelivery inspection of key predelivery inspection areas.

NOTE: Service Managers are requested to distribute these instructions to personnel responsible for predelivery inspection. Service Managers should use these instructions in conjunction with the PreDelivery Inspection Sheet and Problem Free Inspection Sheet to inspect and evaluate predelivery inspection performance.

AREAS

• Interior Dirt Inspection

• RAPGARD Handling

ALL MODELS - Interior Dirt Inspection Point

DESCRIPTION

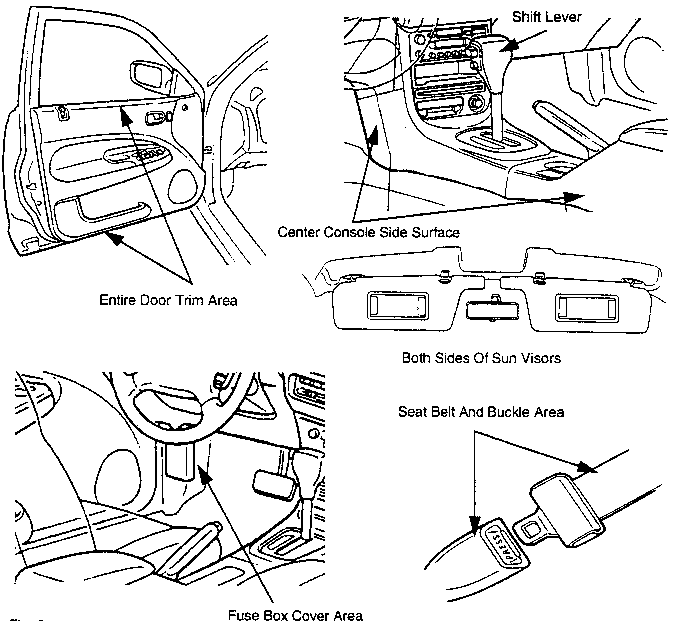

Although the vehicle interior is protected in various ways, interior parts that the driver touches during transportation always have the possibilty of being stained. Inspect the following areas regularly while the vehicle is in inventory and PDI.

• Door Trim Upper Lower End (Driver's side)

• Seat Belt Buckle

• Sun Visor

• Side Of Brake Lever

• Instrument Panel

• Center Console Side Surface (Drivers side)

• Fuse Box Cover

• Shift Lever

• Scuff Plate

Remove all dirt and grease with a suitable cleaner.

NOTE:

• The inspection should be done with enough lighting. If there is not enough light, dirt may be overlooked. To maintain adequate light, keep the door open during inspection.

• Protective covers should always be correctly installed. If you find a break, rip, peeling, poor fit, or mis-alignment of protectors, restore them immediately.

ALL MODELS - RAPGARD Handling

DESCRIPTION

Unless the vehicle is scheduled for display or immediate retail, do not remove the film during PDI. RAPGARD is designed to protect the vehicle from scratches, airborne fallout, and acid rain during storage periods.

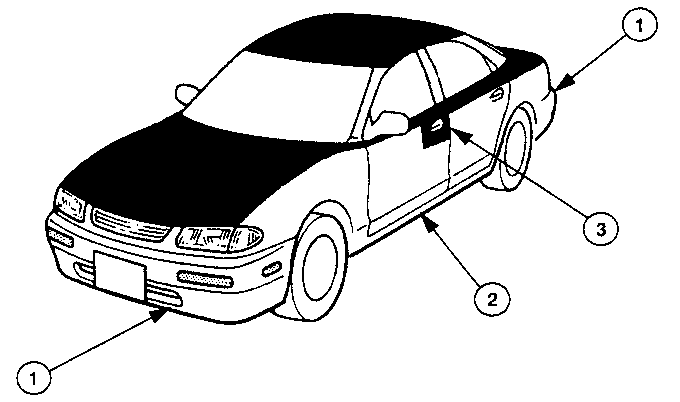

Areas not protected are subject to scratches. Dealer Personnel are responsible for vehicle inspections and should pay special attention to the areas listed below.

• Front and Rear Bumper

• Front Scuff Plate (Driver's side)

• Outer Door Handle Area (Driver's side)

If you need to remove RAPGARD during PDI, you should confirm if adhesive residue of RAPGARD has been completely removed.

Residue is difficult to see and may still exist after the film removal. To confirm complete removal, gently run your hand along the edge where the film was attached. Remove existing residue with Kerosene, Alcohol or Pre-Kleano Wax using a soft cloth.
