F001/96 HORN NOISE FROM EXHAUST SYSTEM

Note: This bulletin contains revised sections. Please update your records accordingly.

APPLICABLE MODELS

All 1995 - 96 Protege with Z5 engines and automatic transaxles.

DESCRIPTION

A horn noise may be heard from the exhaust system while driving at 2800 RPM. A tail pipe tip is available to reduce this noise.

Customers complaining of this noise should have the vehicle inspected and if necessary, the tail pipe tip installed.

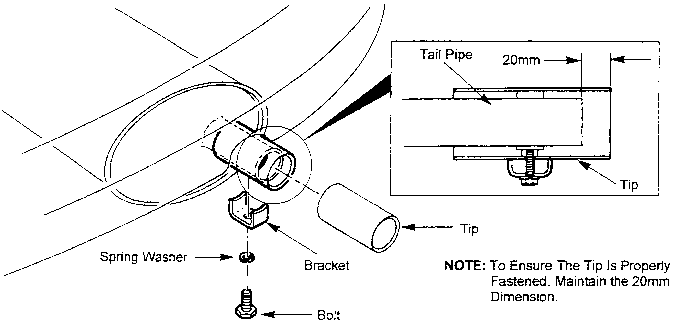

INSTALLATION PROCEDURE

WARNING: Allow the vehicle's tail pipe to cool for at least 30 minutes prior to installation.

1. Verify the concern.

2. Insert the tip onto the tail pipe end.

3. Secure the tip 20mm from the end of the tail pipe.

PARTS INFORMATION

Part Number	Description	Qty
B16B V4 260F	Muffler Cutter	1

WARRANTY INFORMATION

(Applies To Verified Customer Complaints On Vehicles Covered Under Normal Warranty. Refer To The SRT Microfiche For Warranty Term Information.)

Warranty Type

A

Symptom Code

81

Damage Code

9J

Part Number Main Cause

B16B V4 260F

Quantity

1

Operation Number

XX0785RX

Labor Hours

0.2Hrs.
