Protegé FAQ - TSB R002/96

TSB: R002/96

FRONT AND REAR WHEEL ALIGNMENT ADJUST BOLT AND CAM PLATE MODIFICATION

APPLICABLE MODELS/VINS OF PRODUCTION CHANGE

1996 Millenia with a VIN of JM1TA22**T1210001 and higher.

1996 Protege with a VIN of JM1BB14**T0349420 and higher.

1996 MX-5 Miata with a VIN of JM1NA35**T0714662 and higher.

DESCRIPTION

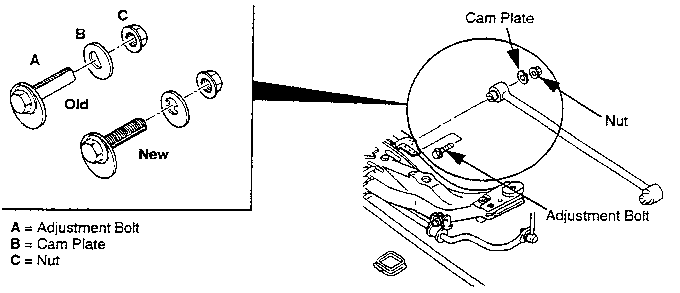

The wheel alignment adjustment bolt and cam plate configurations for the above vehicles have been modified to standardize parts.

PARTS INOFRMATION

Part Number		Description	Qty.	Inter.	Applicable Model
New	Old	Description	Qty.	Inter.	Applicable Model
BC1F-28-66Z	BC1D-28-664	Rear Adjust Bolt	2		Protege
BC1F-28-473	BC1D-28-473	Rear Cam Plate	2
B001-39-037B		Nut	2
CA35-28-66Z	H266-28-480A	Rear Adjust Bolt	2		Millenia
CA35-28-473	H266-28-473	Rear Cam Plate	2
TA01-28-66Z	T001-28-664	Front Adjust Bolt	2
TA01-28-473	T001-28-473	Front Cam Plate	2
B001-39-037B		Nut	2
NA80-28-66Z	NA75-34-4A0A	Front Adjust Bolt	4		MX-5
NA80-28-473	NA75-34-473	Front Cam Plate	4
B001-39-037B	B037-28-091	Nut	4
NA80-28-66Z	NA01-28-4A0	Rear Adjust Bolt	4
NA80-28-473	NA01-28-473	Rear Cam Plate	4

The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
The new and the old part are not interchangeable. The new and the old part are interchangeable if the adjustment bolt and cam plate are replaced in a set.
