All 1995-97 Protege (BA, BB BC) with VINs JM1 BC141V0 162313 and JM1 BC142V0 162320 or lower.
The door mirror is not adjustable (uncontrollable) using the inside door control lever. This is due to the internal O-ring of the mirror pivot breaking, causing the pivot to seize and allowing the mirror adjustment wires to become loose. A modified part is available which has protective grease added to the O-ring to prevent breakage. Customers complaining of this subject should have their vehicle inspected, and if necessary, repaired according to this bulletin.
1. Verify the customers complaint.

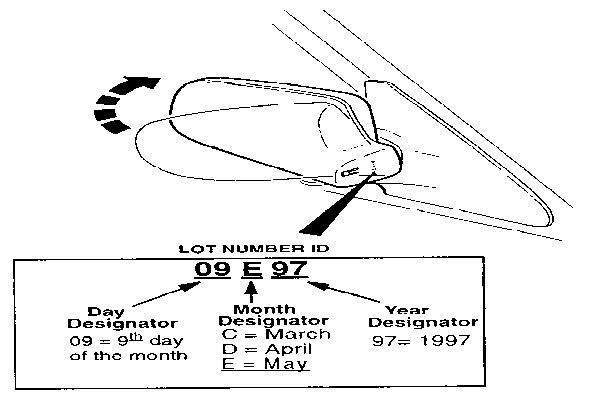

2. Confirm the lot number modification date is lower than 09E97. See example below.Replace mirror per the Workshop Manual.
3. Confirm Repair.
|
Part Number |
Description |
Qty. |
Int. |
|
BC1M 69 120E |
Mirror (RH) |
1 |
A |
|
BC1M 69 180F |
Mirror (LH) |
1 |
A |
"A" means an old part can be replaced with a new part, however, a new part cannot be replaced with an old part.
NOTE: This information applies to verified customer complaints on vehicles covered under normal warranty. Refer to the SRT microfiche for warranty term information.
|
Warranty Type |
A |
|
Symptom Code |
64 |
|
Damage Code |
9A |
|
Part Number Main Cause |
See Part(s) Information |
|
Quantity |
1 |
|
Operation Number / Labor Hours |
S1801ARX 0.2 Hrs. (one side) S1801BRX 0.2 Hrs. (both sides) |
