TSB: S020/98

NOISE FROM FRONT CONSOLE

APPLICABLE MODELS

All 1997-98 Protege with VINs lower than JM1BC14W0181336.

DESCRIPTION

A rubbing noise is heard from the front console when driving. This is caused by the dash board and front console rubbing against each other. To prevent this noise, felt pads have been added to the front console as shown.

Customers complaining of this concern should have their vehicles repaired using the following procedure.

REPAIR PROCEDURE

1. Verify customer complaint.

2. Remove the front console according to the Workshop Manual section S (01).

CAUTION: The Workshop Manual does not mention two plastic tabs that must be released. Use a screwdriver to prevent breakage.

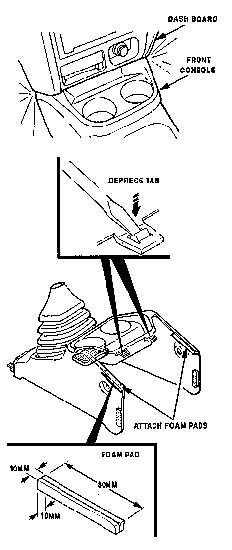

3. Place adhesive foam pads in locations as shown.

NOTE: If any other noise preventative padding is damaged or deformed during the removal process, replace it with new or similar material.

4. Verify repair.

PARTS INFORMATIOON



Part Number

Description

Qty.

Note(s)

B21H-64-320B-09

Console Assembly

0

A/T, Dark Grey

B21H-64-320B-90

Console Assembly

0

A/T, Brown

B21J-64-320B-09

Console Assembly

0

M/T, Dark Grey

B21J-64-320B-90

Console Assembly

0

M/T, Brown

GA2L-50-794

Foam padding

1



WARRANTY INFORMATION

This information applies to verified customer complaints on vehicles covered under normal warranty. Refer to the SRT microfiche for warranty term information.



Warranty Type

A

Symptom Code

82

Damage Code

97

Part Number Main Cause

See PART(S) INFORMATION

Quantity

0

Operation Number / Labor Hours

XX993XRX / 0.3
