S030/95 POWER OUTSIDE MIRROR GLASS VIBRATION

APPLICABLE MODELS/VINS

All 1995 Protege vehicles with an outside power mirror and a VIN of JM1BA****S0147377 and lower.

DESCRIPTION

The glass on an power outside mirror may vibrate while traveling on a bumpy road. This vibration is caused when the clearance between the mirror glass and the holder increases due to heat. To improve the holding characteristics of the mirror assembly, additional butyl tape has been added. If a customer complains of this vibration, follow the procedure in this bulletin to correct the problem.

NOTE: Production vehicles now have 2mm of butyl tape (instead of 1.5mm) installed to improve the holding characteristics of the mirror holder.

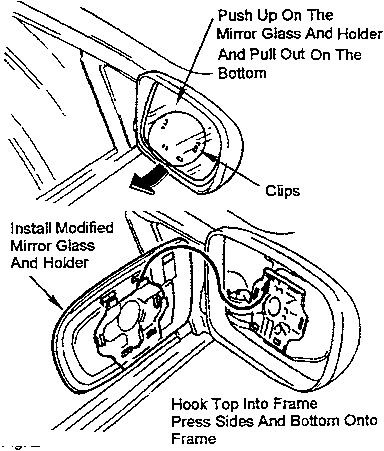

Fig. 1

REPAIR PROCEDURES

1. Verify the complaint.

2. Remove the mirror glass and holder.
   • Push up on the top of the mirror glass.
   • Pull the bottom outward to remove the glass and holder from the frame.

3. Install a modified mirror glass and holder.
   • Hook the top of the mirror glass and holder onto the frame.
   • Press the sides and bottom of the mirror glass and holder onto the frame.

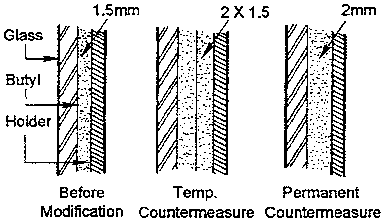

   Fig. 2



PARTS INFORMATION

Part Number	Description	Qty
BC1N 69 1G1	Mirror Glass & Holder (R)	1
BC8E 69 1G7	Mirror Glass & Holder (L)	1

NOTE: The part number has not changed. Identify the the replacement mirror by the configuration and number of pieces of butyl tape applied.

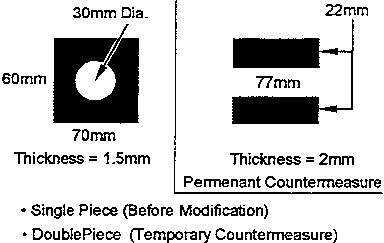

Fig. 3

WARRANTY INFORMATION

(Applies To Verified Customer Complaints On Vehicles Covered Under Normal Warranty. Refer To The SRT Microfiche For Warranty Term Information.)

Warranty Type:

A

Symptom Code:

83

Damage Code:

9E

Part Number Main Cause:

BC1N 69 1G1 (right side)
BC8N 69 1G7 (leftside)

Quantity:

1

Operation Number:

S1802CRX

Labor Hours:

0.2Hrs.
