Protegé FAQ - TSB U003/97

TSB: U003/97

A/C SWITCH MODIFICATION

APPLICABLE MODELS

1995 - 97 Protege DX and LX

DESCRIPTION

Repeated changes have been made to the A/C switch utilized during system installation. Refer to the chart below and the installation notes to identify the required switch and correct action.

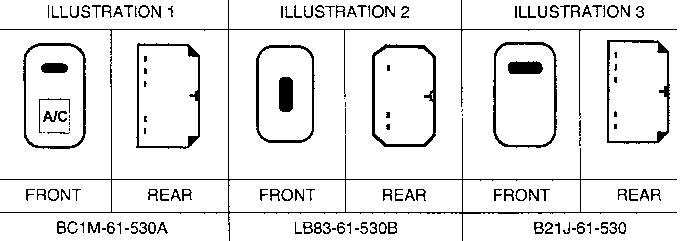

SWITCH IDENTIFICATION

Part Number	1996 Model Year and Prior	1997 Model Year Up to JM1BC1414V0123559	1997 Model Year from JM1BC1414V0123560	Illustration Number
BC1M-61-530A	X		X	1
LB83-61-530B		X		2
B21J-61-530			X	3

Connectors BC1M-61-530A and B21J-61-530 have the same electrical connector and are interchangeable only when following the installation notes below.

INSTALLATION NOTES:

Remove small black sticker from the control panel when installing B21J-61-530 on vehicles with a VIN equal to or greater than JM1BC1414V0123560.

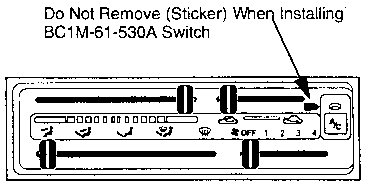

DO NOT remove the small black sticker from the control panel when installing BC1M-61-530A on 1997 vehicles with a VIN equal to or greater than JM1BC1414V0123560.
